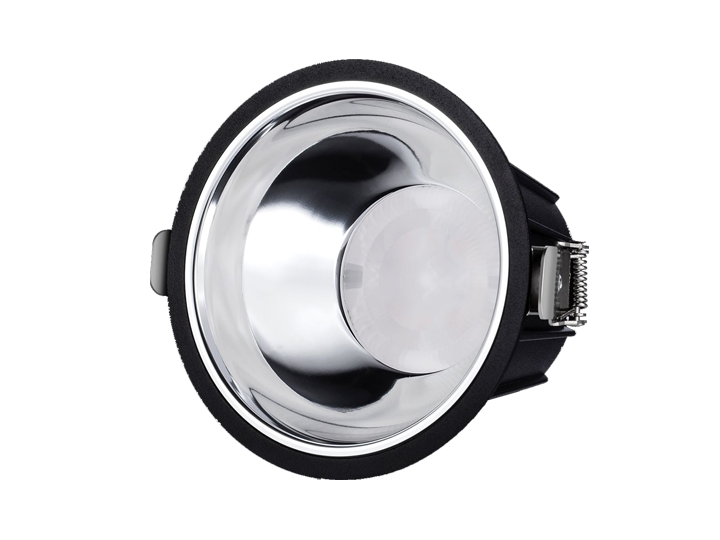

Anti-Glare Series have three size(4in/6in/8in) with wide & narrow edge ring. The power consumption from 8W to 65W. Die- aluminum housing match professional PC lens and aluminum reflector, So that the cut-off angle is designed to be 35deg and the UGR is less than 16. These are series apply to SMD LED chips, so the lighting efficiency more than 130lm/W. 60deg beam angle design suitable for high-end commercial lighting and star hotel area lighting.
GENERAL PERFORMANCE
Structure:
Aluminum,Polycarbonate(PC), Aluminum Reflector
Lumen Maintenance(LM70):
>50,000 Hours
Dimming Function:
Reisitance or 1-10VDC or 10V PWM signal or DALI
Housing:
Aluminum
Lens:
Polycarbonate(PC) + Aluminum Reflector
Mounting:
surface mounted
Operating Temperature:
-20° to 40°
Finish Color Availability:
White or Black or Customizable
Dimension(L x W x H):
211 x 211 x 122 mm
Net Weight(Kg):
1430g
ELECTRIAL
Power Consumption:
36W
Input Voltage:
220-240 VAC
Frequency:
47-63 Hz
Power Factor:
>0.95
Ignition Time(Sec):
<1
Driver Brand:
OSRAM or PHILIPS or Tridonic
OPTICAL ACTERISTICS
LED Efficacy:
LED> 135lm/W, system efficacy> 165lm
CCT:
4000K (3000K or 5000K optional)
LED Chips:
Philips or Osram 3030
Color Reading Index(Ra Value):
>80 (80 or 90 optional)
Bean Angle:
60°
APPROVALS
Certification:
CE / LM-80 / ENEC
Material usage:
RoHS Complaint; No Mercury
Environment:
Indoor
Water proof:
IP 20
CUT-OFF ANGLE
Cut-off angle:
35°
