Outdoor-Industrial-Lighting

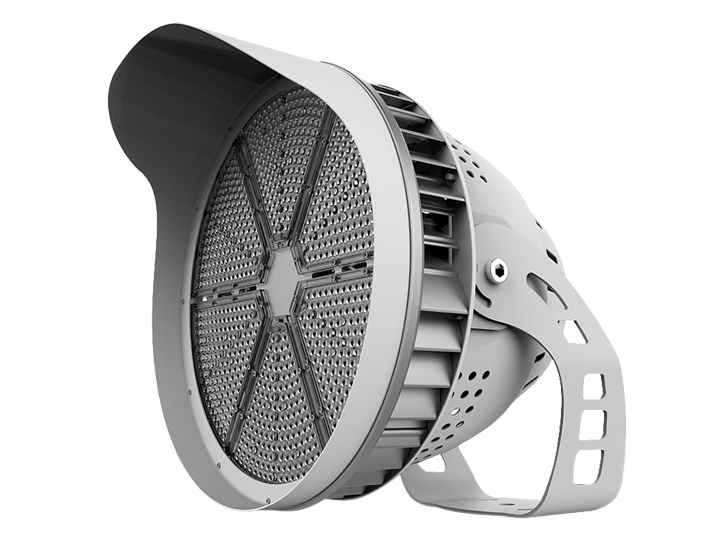

    Arena outdoor sport & LED High mast Light series is designed to provide the best illumination effect for the next generation of exterior, the whole series is perfectly suited for mounting on high mast or lighting towers and the custom designed optics offer a variety of specialized beam patters for the optimum performance in any sports lighting application. Arena Sports Light combining multi-angle focusing optical system improved light density as for increased the average illumniance of playground.





    GENERAL PERFORMANCE

    Structure:    Aluminmun,Glass, Stainless Steel,
    Lumen Maintenance(LM70):    >50,000 Hours
    Dimming Function:     DALI
    Housing:     Heat Sink-1070 Cold Forged Aluminum
     Lens:     PC
     Mounting:     Bracket
     Operating Temperature:    -20° to 40°
     Finish Color Availability:    Matte white or Customizable
     Dimension(LxWxH):    Dia 460 x 380 mm
     Net Weight(Kg):   19.3 Kg / 51.7(driver included)


    ELECTRIAL

    Power Consumption:    750W
    Input Voltage:    90-305 VAC
    Frequency:     47-63 Hz
    Power Factor:     >0.92
     Ignition Time(Sec):     <1
     Driver Brand:     Meanwell


    OPTICAL ACTERISTICS

    LED Efficacy:    LED> 135lm/W, system efficacy> 125lm
    CCT:    5000K (4000K or 5700K optional)
    LED Chips:     Philips
    Color Reading Index(Ra Value):     >70 (80 or 90 optional)
     Bean Angle:     30°60° 90°


    APPROVALS

    Certification:    CE / LM-80 / ENEC
    Material usage:    RoHS Complaint; No Mercury
    Environment:     Outdoor & Damp Rated
    Water proof:     IP 65
