Outdoor-Industrial-Lighting

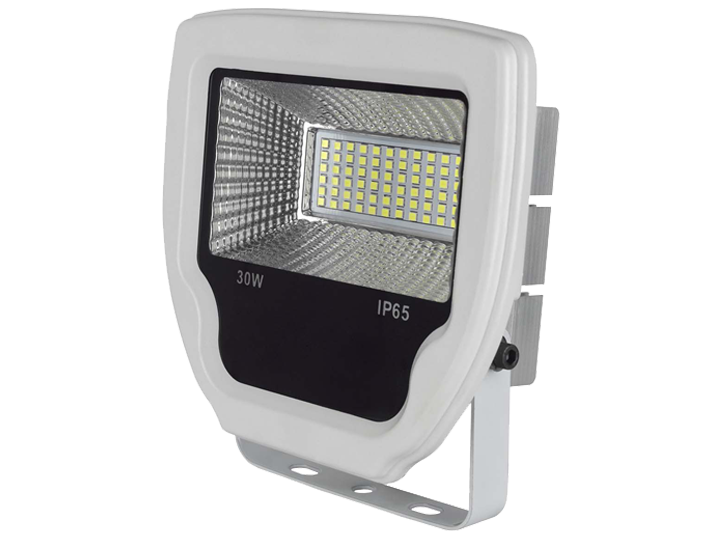

LED Flood light is famous for our differentiated out look designs, unique heat dissipation methodology, excellence in lighting dfficiency, and high stability LED luminaires engineered to be the iedal fixtures for environment, This series can be applied for buildings stadiums, bridges, gardens and so on.
GENERAL PERFORMANCE
Structure:
Aluminmun,Polycarbonate(PC), Stainless Steel
Lumen Maintenance(LM70):
>50,000 Hours
Dimming Function:
Non
Housing:
Aluminum
Lens:
Electroplating reflector + Tempered glass
Mounting:
Bracket
Operating Temperature:
-20° to 40°
Finish Color Availability:
Black or Customizable

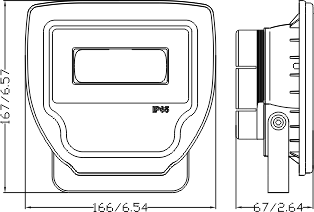

Dimension(L x W x H):
167 x 166 x 67 mm
Net Weight(Kg):
0.34
ELECTRIAL
Power Consumption:
30W
Input Voltage:
100-240V or 100-240 VAC
Frequency:
47-63 Hz
Power Factor:
>0.92
Ignition Time(Sec):
<1
Driver Brand:
GAMAN (Original Made In Taiwan)
OPTICAL ACTERISTICS
LED Efficacy: | LED> 135lm/W, system efficacy> 120lm |
CCT: | 5000K (4000K or 5700K optional) |
LED Chips: | SAN AN |
Color Reading Index(Ra Value): | >70 (80 or 90 optional) |
Bean Angle: | 120 |
Certification: | CE / LM-80 / ENEC |
Material usage: | RoHS Complaint; No Mercury |
Environment: | Outdoor & Damp Rated |
Water proof: | IP 65 |
