Indoor-Industrial-Lighting

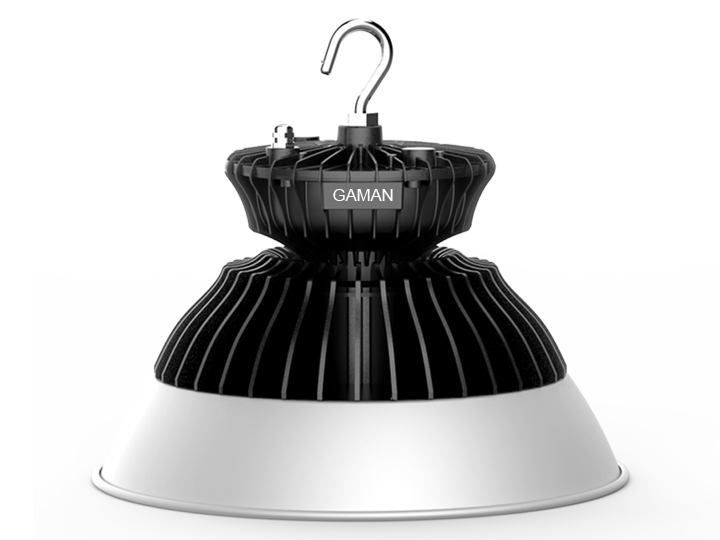

The ThunderLux Highbay LED fixture are dsigned for 7-15m (23-50 foot) and higher ceiling application in Factory, Workshop, Exhibition Hall, Supermarket, Warehouse, Bus Terminal. with an enclosed power supply housing and covered optics, these units are designed for durability in difficult installations locations
GENERAL PERFORMANCE
Structure:
Aluminmun,Polycarbonate(PC), Stainless Steel
Lumen Maintenance(LM70):
>50,000 Hours
Dimming Function:
Reisitance or 1-10VDC or 10V PWM signal
Housing:
Aluminum
Lens:
Polycarbonate(PC)
Mounting:
Hoot & Satety cord / Bracket
Operating Temperature:
-40° to 50°
Finish Color Availability:
White or Black or Customizable

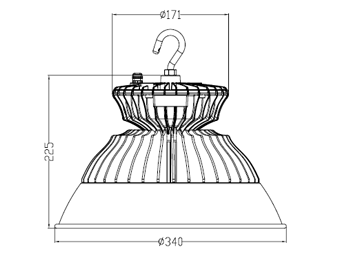

Dimension(L x W x H):
340 x 340 x 221 mm
Net Weight(Kg):
4.2
ELECTRIAL
Power Consumption:
160W
Input Voltage:
100-277 VAC
Frequency:
47-63 Hz
Power Factor:
>0.92
Ignition Time(Sec):
<1
Driver Brand:
MEAN WELL or Gaman (Original Made In Taiwan)
OPTICAL ACTERISTICS
LED Efficacy:
LED> 155lm/W, system efficacy> 145lm
CCT:
5000K (4000K or 5700K optional)
LED Chips:
NICHIA 3030 (or OSRAM or Philips 3030)
Color Reading Index(Ra Value):
>70 (80 or 90 optional)
Bean Angle:
60° /90° / 120°
APPROVALS
Certification:
CE / LM-80 / ENEC
Material usage:
RoHS Complaint; No Mercury
Environment:
Outdoor & Damp Rated
Water proof:
IP 65
REPLACEMENT
Replacement:
450W HID / HPS Lighting Fixtures
