Indoor-Industrial-Lighting

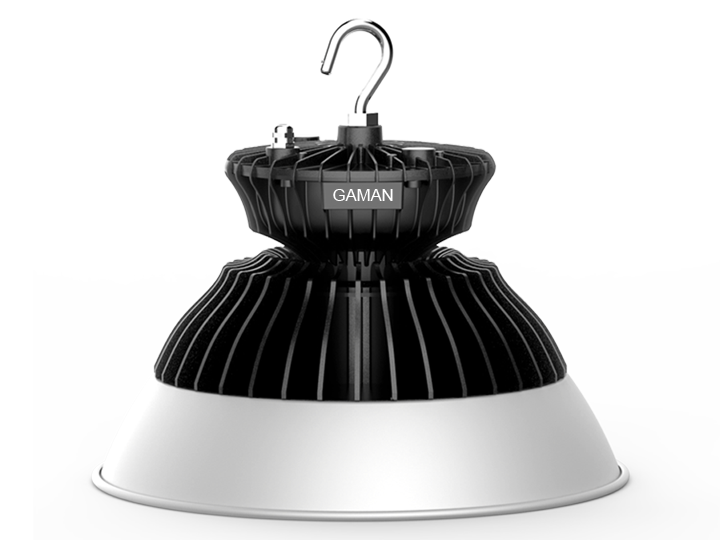

The TurboLux High bay LED fixture are dsigned for 8-25m (26-82 foot) and higher ceiling application in Factory, Workshop, Exhibition Hall, Supermarket, Warehouse, Bus Terminal. with an enclosed power supply housing and covered optics, these units are designed for durability in difficult installations locations.
KEY FEATURES GENERAL PERFORMANCE
Cold forged aluminium heat sink for a maximum heat dispersion
High Power 150lm/W Nichia Chips or Philips
Mean well Driver for ultimate reliability
Available with motion or daylight sensors
Optional DALI dimming
IP65 waterproof
Hook or adjustable racket mounting
5 Year Garantee
Structure:
Aluminmun,Polycarbonate(PC), Stainless Steel
Lumen Maintenance(LM70):
>50,000 Hours
Dimming Function:
Reisitance or 1-10VDC or 10V PWM signal
Housing:
Aluminum
Lens:
Polycarbonate(PC)
Mounting:
Hoot & Satety cord / Bracket
Operating Temperature:
-40° to 50°
Finish Color Availability:
White or Black or Customizable

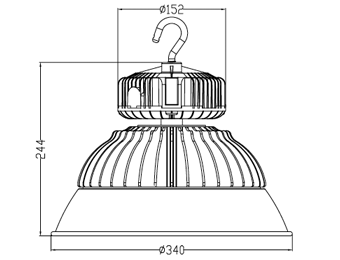

Dimension(L x W x H):
340 x 340 x 221 mm
Net Weight(Kg):
4.2
ELECTRIAL
Power Consumption:
180W
Input Voltage:
100-277 VAC
Frequency:
47-63 Hz
Power Factor:
>0.92
Ignition Time(Sec):
<1
Driver Brand:
MEAN WELL or Gaman (Original Made In Taiwan)
OPTICAL ACTERISTICS
LED Efficacy:
LED> 155lm/W, system efficacy> 145lm
CCT:
5000K (4000K or 5700K optional)
LED Chips:
NICHIA 3030 (or OSRAM or Philips 3030)
Color Reading Index(Ra Value):
>70 (80 or 90 optional)
Bean Angle
60° /90° / 120°
APPROVALS
Certification:
CE / LM-80 / ENEC
Material usage:
RoHS Complaint; No Mercury
Environment:
Outdoor & Damp Rated
Water proof:
IP 65
REPLACEMENT
Replacement:
750W HID / HPS Lighting Fixtures
