Indoor-Industrial-Lighting
KEY FEATURES Cold forged aluminium heat sink for a maximum heat dispersion High Power 150lm/W Nichia Chips or Philips Mean well Driver for ultimate reliability Available with motion or daylight sensors Optional DALI dimming IP65 waterproof Hook or adjustable racket mounting 5 Year Garantee
GENERAL PERFORMANCE
Structure:
Aluminum,Polycarbonate(PC), Stainless Steel
Lumen Maintenance(LM70):
>50,000 Hours
Dimming Function:
Reisitance or 1-10VDC or 10V PWM signal
Housing:
Die-cast Aluminum
Lens:
Polycarbonate(100° Beam angle) / Aluminum + Tempered glass(40°&75° Beam angle)
Mounting:
Hoot & Satety cord / Bracket
Operating Temperature:
-40° to 50°
Finish Color Availability:
White or Black or Customizable

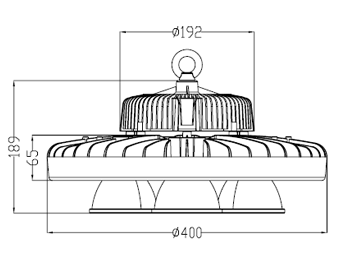

Dimension(L x W x H):
400 x 400 x 189 mm
Net Weight(Kg):
8.2
ELECTRIAL
Power Consumption:
200W
Input Voltage:
100-277 VAC
Frequency:
47-63 Hz
Power Factor:
>0.92
Ignition Time(Sec):
<1
Driver Brand:
MEAN WELL or Gaman (Original Made In Taiwan)
OPTICAL ACTERISTICS
LED Efficacy:
LED> 155lm/W, system efficacy> 145lm
CCT:
5000K (4000K or 5700K optional)
LED Chips:
NICHIA 3030 (or OSRAM or Philips 3030)
Color Reading Index(Ra Value):
>70 (80 or 90 optional)
Bean Angle:
40° /75° / 110°
APPROVALS
Certification:
CE / LM-80 / ENEC
Material usage:
RoHS Complaint; No Mercury
Environment:
Outdoor & Damp Rated
Water proof:
IP 65
REPLACEMENT
Replacement:
750W HID / HPS Lighting Fixtures
