Indoor-Industrial-Lighting

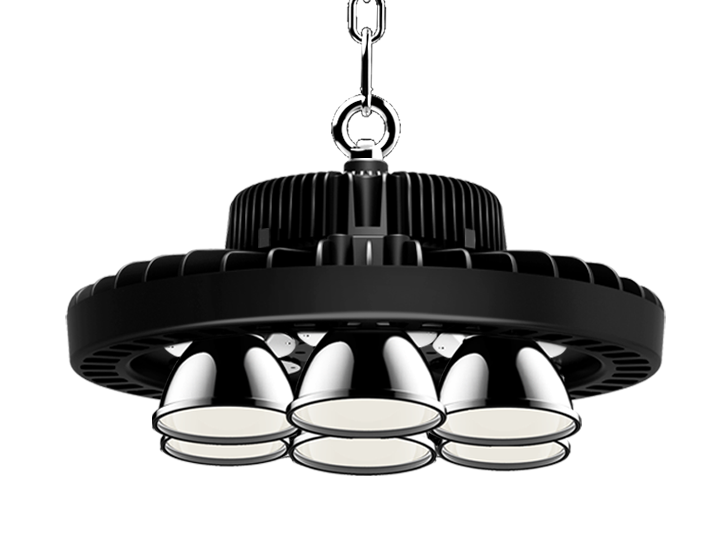

    The UFOLux High bay LED fixture are dsigned for 8-25m (26-82 foot) and higher ceiling application in Factory, Workshop, Exhibition Hall, Supermarket, Warehouse, Bus Terminal. with an enclosed power supply housing and covered optics, these units are designed for durability in difficult installations locations.





    GENERAL PERFORMANCE

    Structure:    Aluminum,Polycarbonate(PC), Stainless Steel
    Lumen Maintenance(LM70):    >50,000 Hours
    Dimming Function:     Reisitance or 1-10VDC or 10V PWM signal
    Housing:     Die-cast Aluminum
     Lens:     Polycarbonate(PC) 100°  Aluminum + Tempered glass 40°  & 75°
     Mounting:     Hoot & Satety cord / Bracket
     Operating Temperature:    -40° to 50°
     Finish Color Availability:    White or Black or Customizable

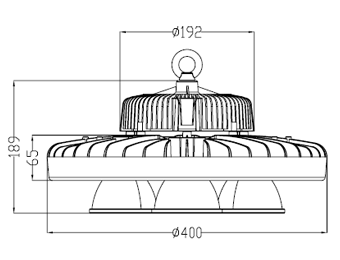

     Dimension(L x W x H):    400 x 400 x 189 mm
     Net Weight(Kg):   8.2

    ELECTRIAL
    Power Consumption:    240W
    Input Voltage:    100-277 VAC
    Frequency:     47-63 Hz
    Power Factor:     >0.92
     Ignition Time(Sec):     <1
     Driver Brand:     MEAN WELL or Gaman (Original Made In Taiwan)


    OPTICAL ACTERISTICS
    LED Efficacy:    LED> 155lm/W, system efficacy> 145lm
    CCT:    5000K (4000K or 5700K optional)
    LED Chips:     NICHIA 3030 (or OSRAM or Philips 3030)
    Color Reading Index(Ra Value):   >70 (80 or 90 optional)
      Bean Angle:    40° /75° / 110°

    APPROVALS
    Certification:    CE / LM-80 / ENEC
    Material usage:    RoHS Complaint; No Mercury
    Environment:     Outdoor & Damp Rated
    Water proof:     IP 65

    REPLACEMENT
    Replacement:    750W HID / HPS Lighting Fixtures
